Lightweight
The XCHT frame comes in at just over 2lbs. Full carbon fiber frame construction translates to excellent power transfer with minimal vibration, improving comfort on rough terrain and long rides.
Efficient
We added vertical compliance in the seat stays of Jibe hardtail mountain bikes, which reduces harshness, vibration, and fatigue. Integrating cables within the frame not only protects them from dirt and damage but also reduces air resistance. This smooths the ride out and allows you to continue pedaling long after your competition has given up.
Precise
Extra stiffness in the bottom bracket and head-tube area reduces flex and unwanted sway. This means your XCHT will go exactly where you want it to, when you want it to.
XCHT Build Kits
XCHT | Competition
"Be competitive without breaking the bank"
Fork: Manitou Markhor
Groupset: Shimano Deore M6100 1x12s
Wheels: Shimano MT601 29"
STARTING AT $2,200
XCHT | Race
"Ready to rock 'n race"
Fork: Marzocchi Bomber Z2
Groupset: Shimano SLX M7100 1x12s
Wheels: Shimano MT601 29"
STARTING AT $2,600
XCHT | Expert
"Price to performance perfection"
Fork: Fox 34 Step Cast Performance
Groupset: Shimano XT M8100 1x12s
Wheels: Jibe aluminum hand-built wheels (Jibe X28 MTB hubs, Race Face ARC Offset 30 29" hoops, Sapim spokes and nipples)
STARTING AT $3,500
XCHT | Factory
"Ride what our Factory Racers ride"
Fork: Fox 34 Step Cast Factory
Groupset: Shimano XTR M9100 1x12s
Cranks: Race Face ERA carbon
Wheels: Jibe Factory hand-built carbon wheels (Jibe X28 MTB hubs, Jibe Factory 29" 30mm ID carbon hoops, Sapim spokes and nipples)
STARTING AT $5,500

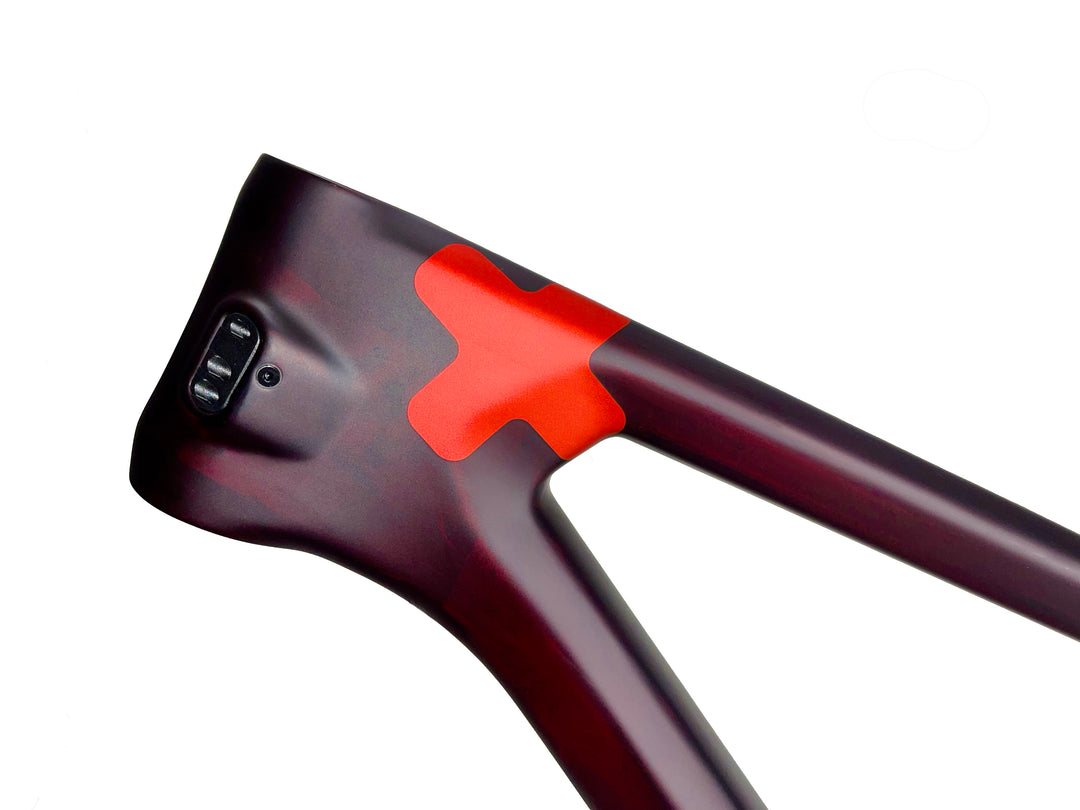

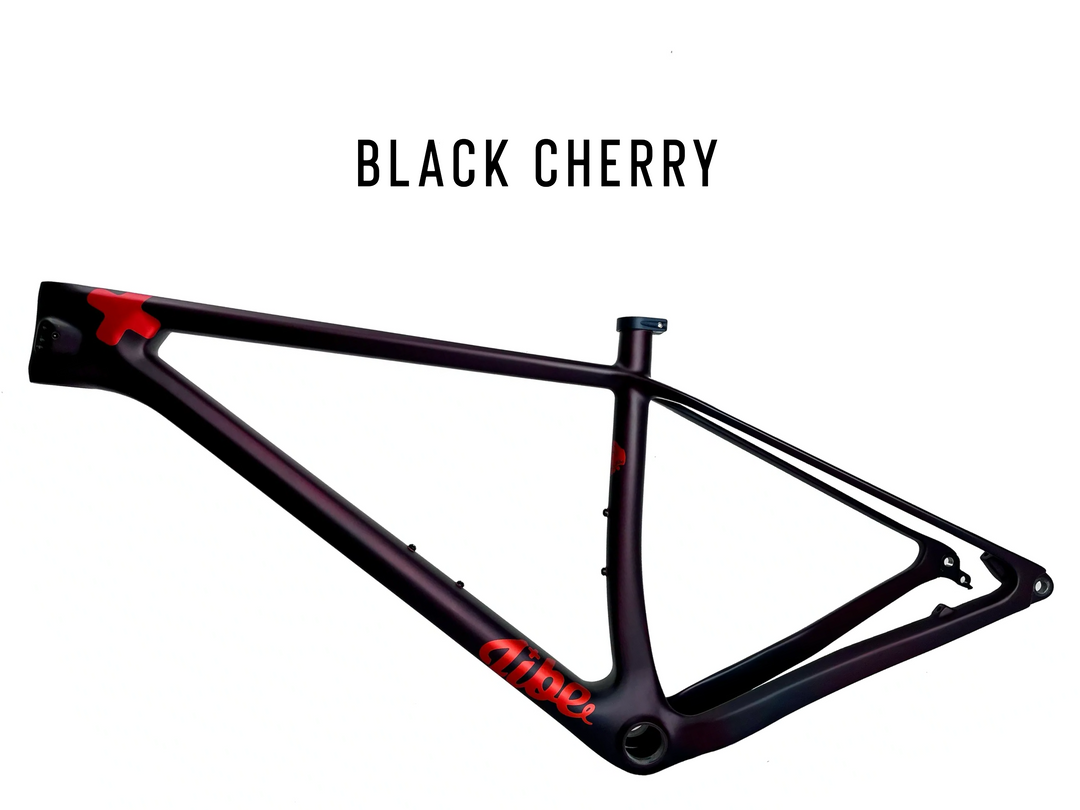

Black Cherry

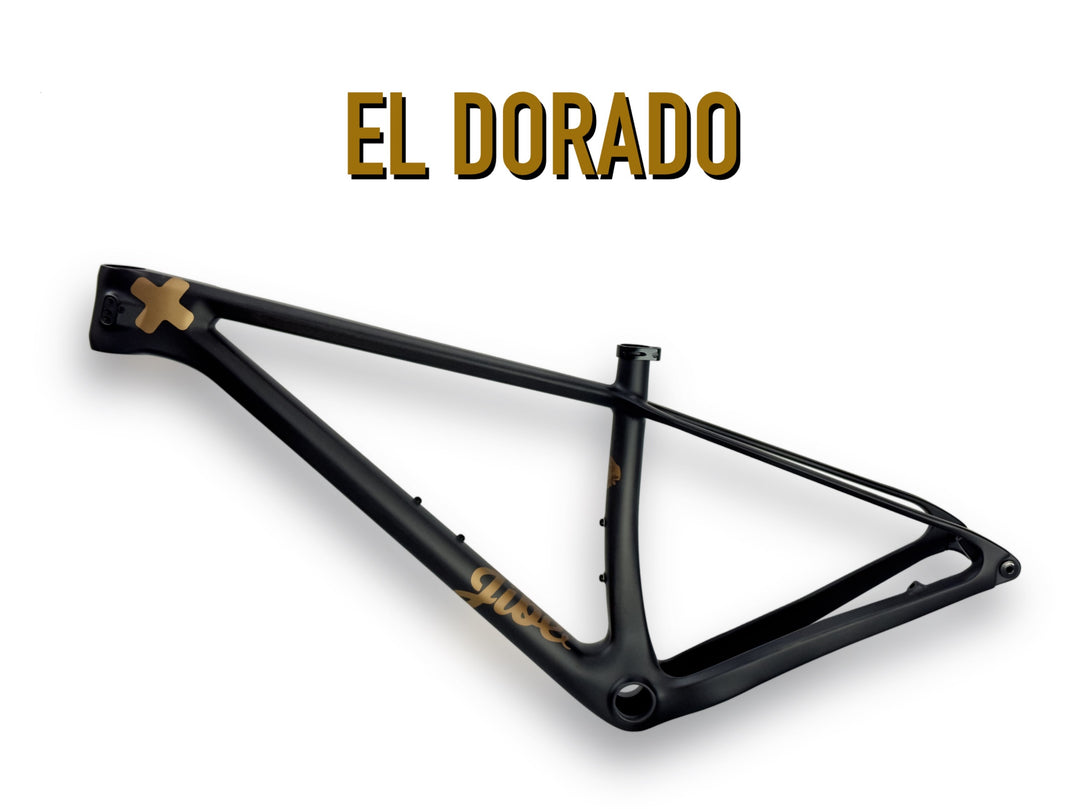

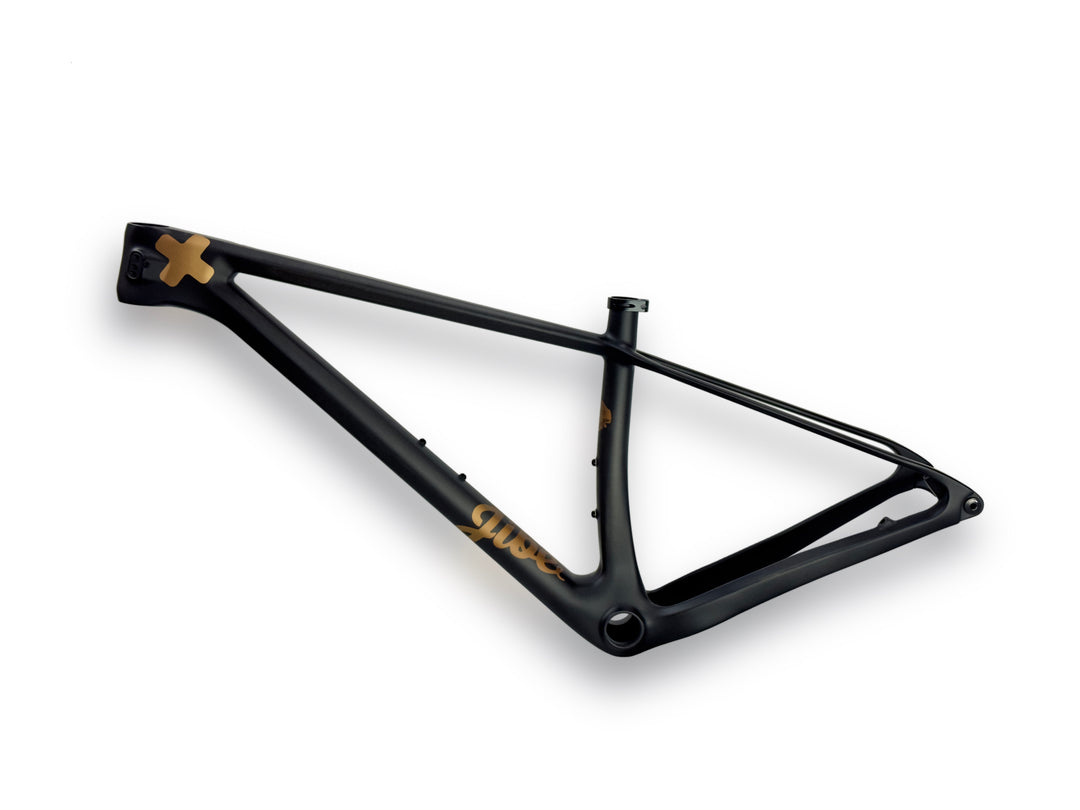

El Dorado

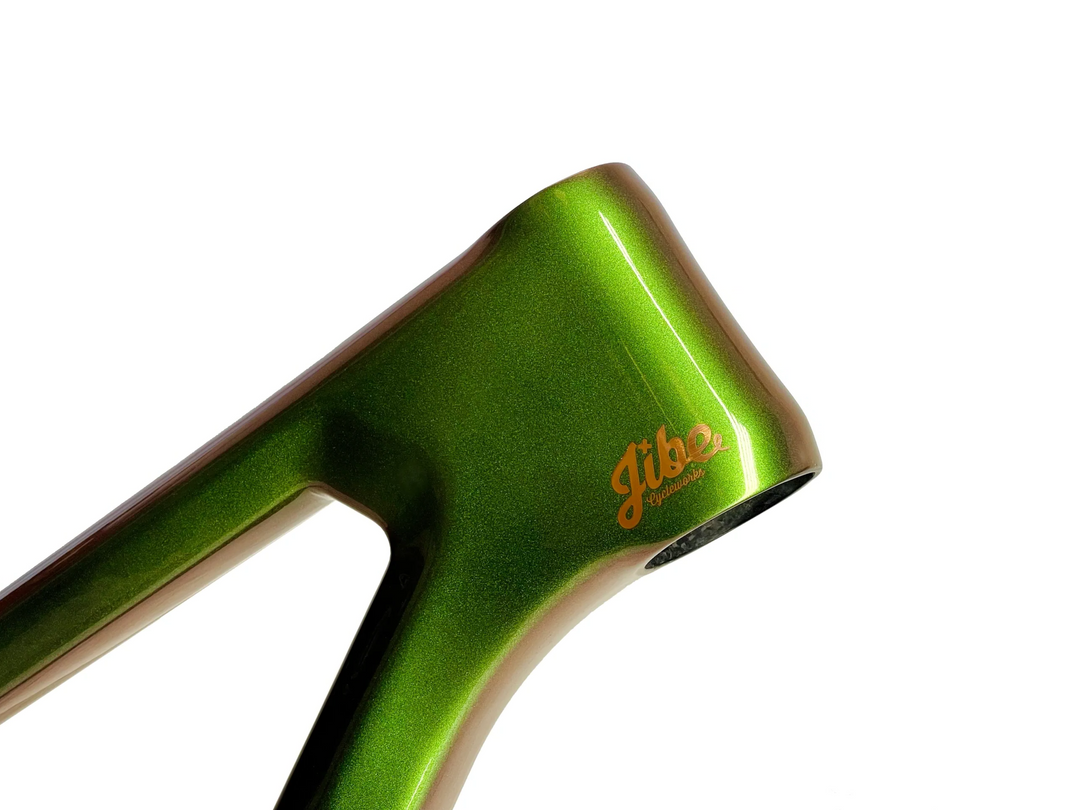

Chameleon Copper
FRAME SPECIFICATIONS
Frame Weight: 1170g / 2.58lbs - Size medium
Chain line: Boost 52mm, 168mm Q-Factor
Headset: FSA NO.42, Orbit C-40-ACB 1-1/8" - 1.5"
Head Tube: Integrated Tapered 1-1/8" to 1-1/2"
Fork Travel: 100mm/120mm
Recommended fork offset: 100mm travel fork = 51mm /120mm travel fork = 44mm
Rear Brake: 160mm post mount, 180mm max
Seat Post: 30.9mm
Max Tire: 29" x 2.5
BB: Press fit 90 Bottom Bracket
Internal cable routing: Rear brake, rear derailleur, dropper post
Thru axle: 168mm x 12mm

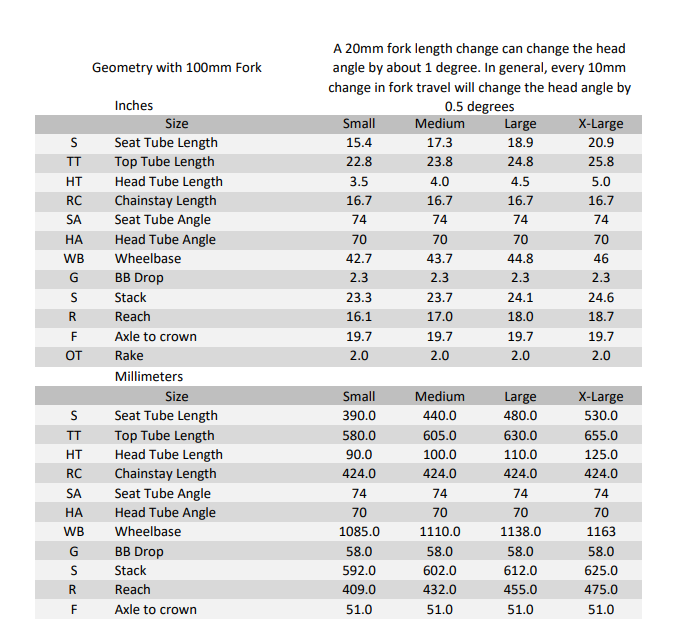

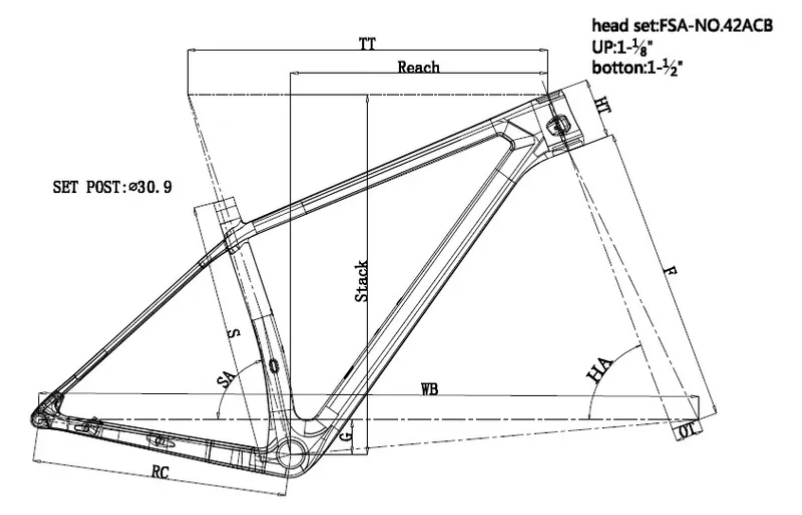

GEOMETRY
SIZE GUIDE
Suggested frame sizing by rider height
Small = 4'10" - 5'6"
Medium = 5'5" - 5'10"
Large = 5'9" - 6'2"
Extra Large = 6'1" - 6'6"

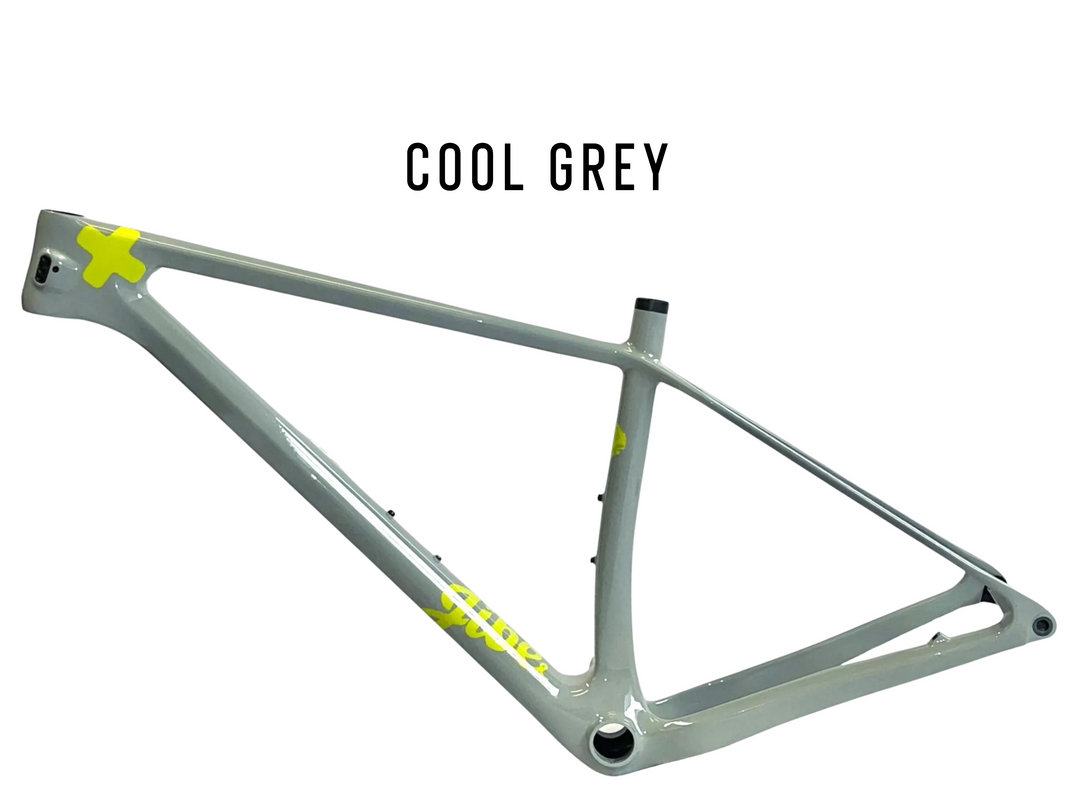

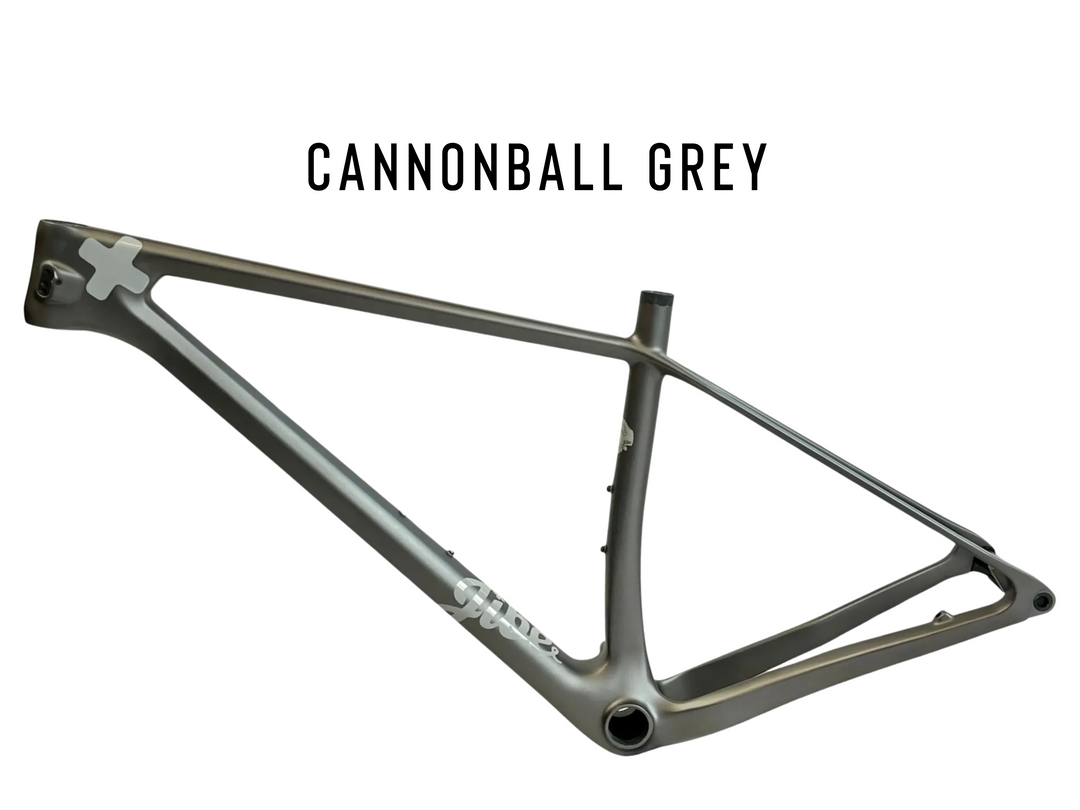

Frame Color Options
Our colors change with each batch of we produce. If you see one you like act fast because once we sell out we may not make that color again.
